MCCQ-211SN Mini Inline Blade Fuse Holder In-line Automotive
Fuseholder
SL-709CA
mini blade fuse holder.pdf
Product DescriptionFor Mini Auto Blade FusesIdeal for 2A, 3A, 5A, 7.5A, 10A, 15A, 20A, 25A, 30A mini/ATM blade
fuses.

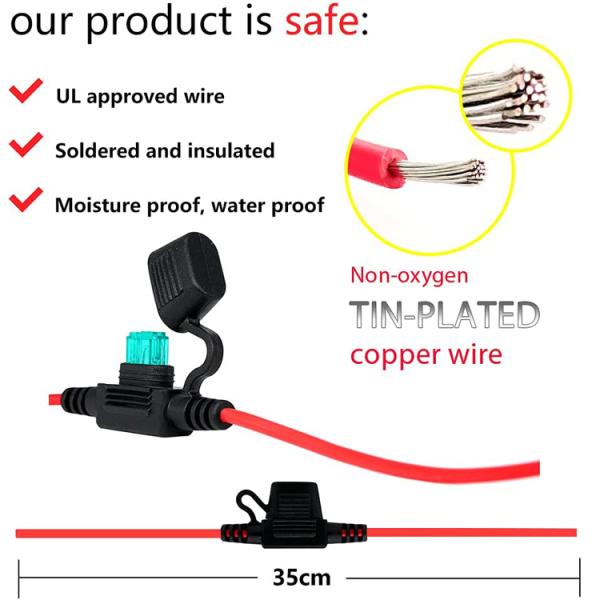

High quality PVC material and pvc insulated copper wire ensure high
fatigue resistance, melting resistance and excellent electrical
conductivity,
Easy installation of additional circuits without cutting or
spicing.
Fuse holder with cover, dirt and water resistance,.
Features:
- Rated Current : 30A
- Minimum Insulation Resistance : 1,000MΩ at 500V DC
- Contact Resistance : 5mΩ at 1A DC
- Minimum Dielectric Strength : 1,000V AC for 60 seconds
- Body Material : PVC
- Contact : Brass, tin plated
| Item | JEF-709CA Fuse Holder |
| Fuses | Mini Blade |
| Mounting Type | In-line |
| Rating | 30A 32V |
| Body Color | black |
| House material | PVC |
| Terminal material | brass |
| Body length | 54 mm |
| Body height | 24.3 mm |
| Body thickness | 10.8 mm |
Available in various wire gauges, lengths and colors.
Dimension MCCQ-211SN Mini Inline Blade Fuse Holder In-line Automotive
Fuseholder
UL 1015 PVC Cable
Water Resistant
What you need to know before ordering:
| Size | This is for mini blade fuses.
Suitable for 1A,2A,3A,5A,7.5A,10A,15A,20A,30A
(Smilar models for standard and maxi fuses are available) |
| Wire length | which gauge? looped wire or cut wire? how long? |
| Wire ends | need stripping? |
| Fuse | need fuses preinstalled? |
Applications
Automotive, Boat, Truck, SUV, Motorcycle, etc.
Standard Package:
depends on the cable spec
Shipping Term:
EXW, DDU, DDP, C&F, FOB
Shipping Methods:
International Express, By Air, By Sea
What size are mini blade fuses?
Mini Blade Fuses & Low-Profile Mini Blade Fuses
Mini Blade fuses are 10.9mm wide, 16.4mm tall and 3.8mm thick. Low
profile Mini Blade fuses are the same width and thickness, but only
8.73mm tall making them 7.5mm shorter in height to save space.
Can I replace a glass fuse with a blade fuse?
Replace the corroded and broken parts with new inline fuse holders
and glass fuses and it'll work perfectly. Plus it will be the
correct ratings which you can't easily get with blades as there
aren't direct replacements. The glass fuses work fine and will last
long enough once replaced.
What is the difference between an ATO and ATC fuse?
The ATC has a fuse element that is closed (hence the “C” in the
code) inside the plastic housing, sealing it from the environment to prevent corrosion from
developing. The ATO fuse is open on the bottom, exposing the fuse
element between the blades.
