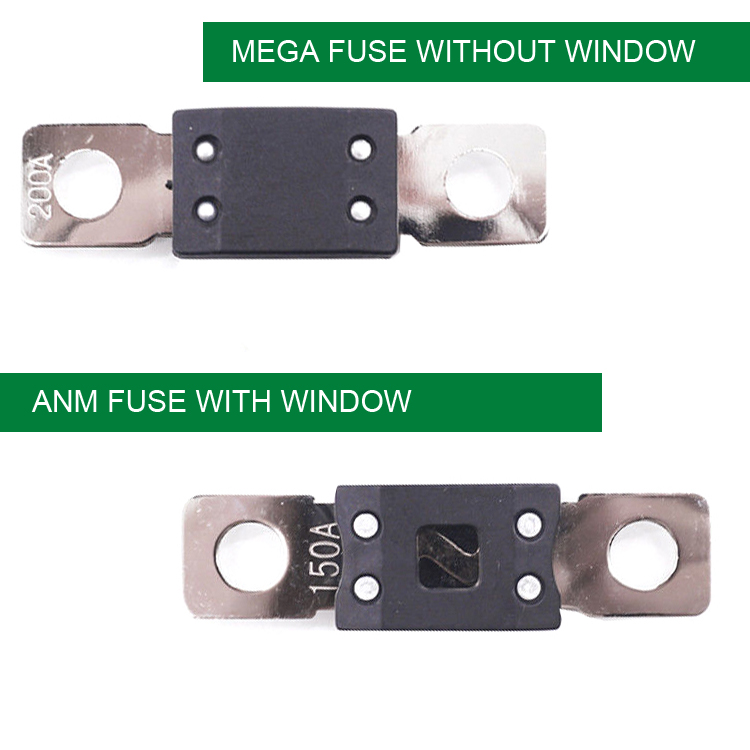

298 SERIES Fuse TIME DELAY BOLT DOWN AUTOMOTIVE MARINE MEGA AMG
FUSE
Product Description
| Product Name | MEGA AMG Automotive Fuse |
| Types | Bolt Down |
| Volts | 32V dc |
| Amps | 60A 70A 80A 100A 125A 150A 175A 200A 225A 250A 300A 350A 400A 450A
500A |
| Blow Speed | Slow Blow |
| Environmental | Lead and Ph free |
| Package | 100pcs per bag |
Suitable for new energy vehicles, forklifts, motor controllers,
charging piles,
rechargeable motors, ships and other low-voltage ELECTRICAL
AUTOMOTIVE and MARINE appliances.
This MEGA AMG FUSE is ideal for battery and alternator protection
application and other heavy
gauge cables requiring high current protection.
| Specification | Parameters |
| Interrupting Capability | 2000A @ 32 VDC |
| Rated Voltage | 32 VDC |
| Ambient Temperature | -40°C to +105°C |
| Terminals Material | nickel plated copper |
| Insulation Material | PPA |
| Standard | IS08820-5 / UL248 |
| Torque | 8-14 Nm M6,12-18 Nm M8 |
Electrical Performance
| TESTING CURRENT | BLOW TIME LIMIT |
| 100% | >4 Hr |
| 135% | 120s - 1800s |
| 200% | 1s - 15s |
| 350% | 0.3s - 5s |
| 600% | 0.1s - 1s |
298 SERIES Fuse TIME DELAY BOLT DOWN AUTOMOTIVE MARINE MEGA AMG
FUSE
Drawing of 298 SERIES Fuse TIME DELAY BOLT DOWN AUTOMOTIVE MARINE MEGA AMG
FUSE
MEGA AMG FUSE HOLDER ANM-H:
Standard Package of AMN MEGA or AMG Fuses
100pcs per bag, 5000pcs per carton
Shipping Term:
EXW, DDU, DDP, C&F, FOB
Shipping Methods:
International Express, By Air, By Sea
Q: Are you trading company or manufacturer ?
A: We are a fuse product factory.
Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock, 5-10 days if
the goods not in stock, according to the quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay
the cost of freight.
Q: What is your terms of payment ?
A: 100% in advance, T/T.
298 SERIES Fuse TIME DELAY BOLT DOWN AUTOMOTIVE MARINE MEGA AMG
FUSE 60A 70A 80A 100A 125A 150A 175A 200A 225A 250A 300A 350A 400A
450A 500A
