PCB Fuse Holder Inline Fuse Holder Panel Mount Fuse Holder 5x20
6x30 Tube Fuse Holders
PCB, Inline and Panel Mount Fuse Holders for 5x20 6x30 Tube Fuses
| Item | Fuse holders for 5x20mm and 6x30mm tube fuses |
| Mouting Style | PCB, Inline and Panel Mount |
| Materials | PA66, Bakelite, PC, Brass |
| Max Rating | 10A 250V |
| Certifications | UL CSA RoHS |
| MOQ | 1000PCS |
Suggested 5x20 and 6x30 fuse holders
5x20 6x30 glass tube fuses and ceramic tube fuses
Panel mount fuse holders catalogue

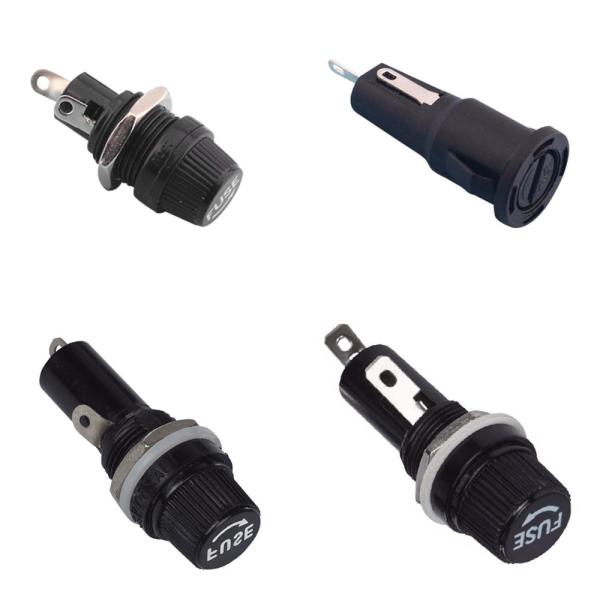

The most widely used 5x20 6x30 Tube Fuse Holders
Panel mount fuse holders
PCB mount fuse holders
Inline mount fuse holders
Hot Model
1. Type: panel mount fuse holder
2. Size: 6*30mm
3. Standard: National Safety Standards
4. Certification: ISO9001, RoHS
Product Name | ALCO Flat Type Panel Mount 6*30mm fuse holder |
Mounting Ways | Panel mount, screw cap |
Material | phenolic, nickel plated brass |
Rating | 10A 250V/15A 125V |
Warranty Period | 2 years |
International Approvals | UL CSA |
Accessories | 3AG fuses |
Contact Resistance:<0.02Q
Withstanding Voltage:2AC300ovlnsulation Resistance:≥1000mQ

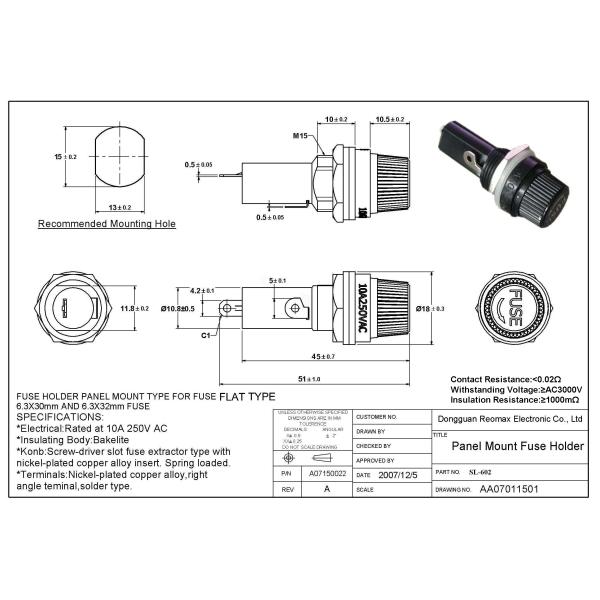

For 6.3x30mm or 6.3×32mm FUSES
*Electrical:Rated at 10A 250V AC*Insulating Body:Bakelite
*Konb:Screw-driver slot fuse extractor type withnickel-plated
copper alloy insert. Spring loaded.
*Terminals:Nickel-plated copper alloy,right angle teminal,solder type.
Company Introduction
Founded in 1999, Reomax focuses on manufacturing circuit protection
components for over-current, over-temperature and over-voltage
applications. Reomax products are widely used in various kinds of
electronic devices, such as consumer electronics, mobile terminals,
household appliances, lighting appliances, power supplies and
adapters. We have acquired ISO9001/UL/cUL/VDE/CCC/CQC safety
certificates. After serving our valuable clients in China market
over 20 years, Reomax fuses has become one of the leading fuses
suppliers. In order to create more value and save more cost for our
global clients, we start to provide the shortest fuses product
supply chain mode and we are now available in worldwide. Reomax
believes in "customer first, sincere cooperation, continuous
improvement and innovation", and takes continuous efforts in
producing high quality products to meet the demands of users. Our
goal is to become the "global excellent circuit protection
manufacturer".
UL certificate
ISO Certificate
Production Lines

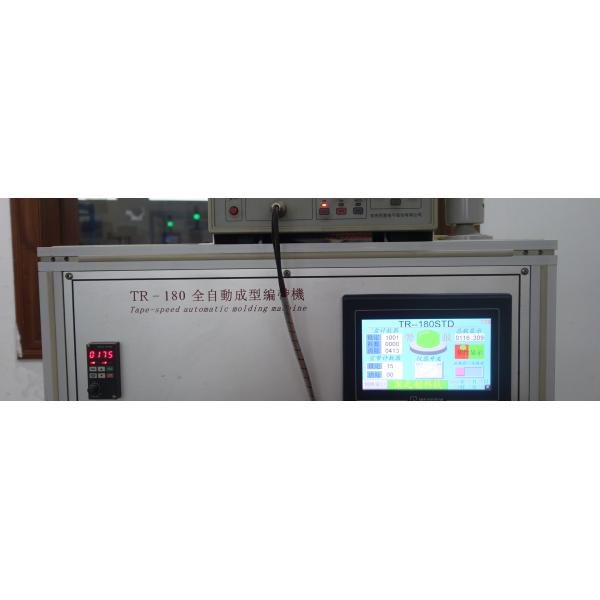

Test Equipment
Company warehouse
Q: Are you trading company or manufacturer ?
A: We are a fuse product factory.
Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock, 5-10 days if
the goods not in stock, according to the quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay
the cost of freight.
Q: What is your terms of payment ?
