6 Way Blade Fuse Holder Auto Fuse Block With 6 Slots Fuse Box
Holder With 6.3 Terminals For Bus Boat Marine RV
Product Description
| Item | Blade Fuse Holder Box |
| Qty of fuse slots | 6 |
| Max Rating | Standard blade fuse (ATO / ATC) |
| Terminal Type | 6.3mm blade |
| Output connections | black |
| House material | PA66 |
| Terminal material | brass |

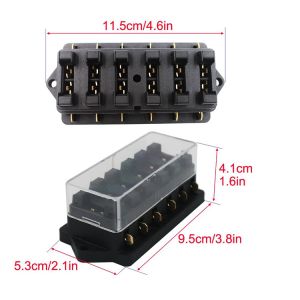

| Dimension | 115x53x42mm |
| Hole distance | 106mm |
- Base: PA66 (UL flame: 94V-1)
- Cap:PC(UL flame: 94V-2)
- Terminal: tin plated brass
- Output rating: 40A max per circuit
- Ambient temperature: -40℃ to +125℃
- ldentify circuits by foot print marking
- Clear insulating cover design for water and dust proof
- Made of high quality PC, nylon and brass, suitable for all vehicle
models
- Sturdy plastic cover with push latch system, easy to operate,
protect fuse from dust, dirt and splash
- Voltage up to 32V DC, apply to 1~ 40 AMP
- 6.3mm fuse holder.
Gallery of 4/6/8/10/12-way blade fuse holders
6 way fuse holder drawing
Application
Widely used in all automobile electric circuit, automotive
electronic field, electrical devices and cars, boats van etc.
Suitable for all kinds of automotive and marine applications.
Drawing of ATO/ATC Blade Fuses
Most used amperes
Fuse Colors & Ratings
| Color | Current rating |
| Black | 1 A |
| Grey | 2 A |
| Violet | 3 A |
| Pink | 4 A |
| Tan | 5 A |
| Brown | 7.5 A |
| Red | 10 A |
| Blue | 15 A |
| Yellow | 20 A |
| Transparent | 25 A |
| Green | 30 A |
| Blue-green | 35 A |
| Orange | 40 A |
| Red | 50 A |
| Blue | 60 A |
| Amber/tan | 70 A |
| Transparent | 80 A |
| Violet | 100 A |
Standard Package:
depends on the cable spec
Shipping Term:
EXW, DDU, DDP, C&F, FOB
Shipping Methods:
International Express, By Air, By Sea
Selection of the Fuse and Holder Solution
The first step is to answer the following questions:
- Will the fuse need to accessible for replacement?
- How often will the fuse need to be replaced?
- Should the end customer of the appliance have access to change the
fuse?
- Should the fuse only be accessible from outside the appliance?
- How much is available to spend on safety and reliability?
Notice
1. Replace the fuse according to the rated current value indicated
in the fuse box, and do not use a fuse with a higher rated current.
2. If the new fuse is blown immediately, this indicates that the
circuit system may be faulty and should be repaired as soon as
possible.
