Datasheet of BX2017 Inline Red Fuse Holder Ceramic Body for blade
fuse
SL-707
blade fuse holder.pdf
Description of BX2017 Inline Red Fuse Holder Ceramic Body for blade fuse
For standard Automotive Blade Fuses
Heavy duty blade fuse holder, ideal for 1A, 2A, 3A, 5A, 7.5A, 10A,
15A, 20A, 25A, 30A blade fuses.
High-quality materials, pvc insulated wire, ensure high fatigue
resistance, melting resistance and excellent electrical
conductivity,
Easy installation of additional circuits without cutting or
spicing.
Stackable mounting for multiple combination.
The cover is connected with the case at one end.
Best for cars, boats, motorbikes and trucks.
| Item Name | BX2017 Inline Red Fuse Holder Ceramic Body for blade fuse |
| Mounting Type | In-line |
| Electrical Rating | 32V 30A |
| Certifications | RoHS |

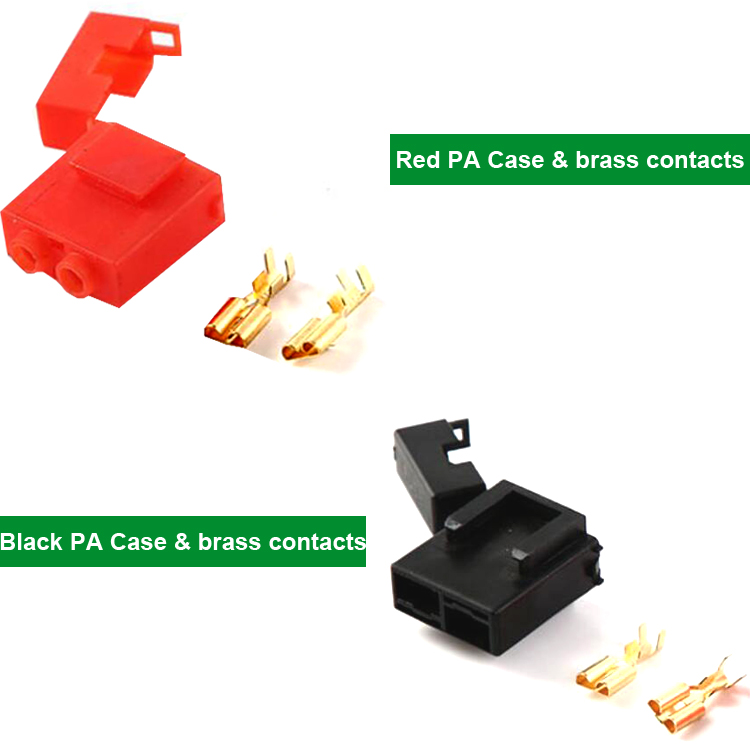

| Case Material | PA66 |
| Body Material | Ceramic |
| Contact material | brass |
| Case Dimension | 30x40mm |
| MOQ | 1000PCS |
Available in various wire gauges & lengths & wire colors.

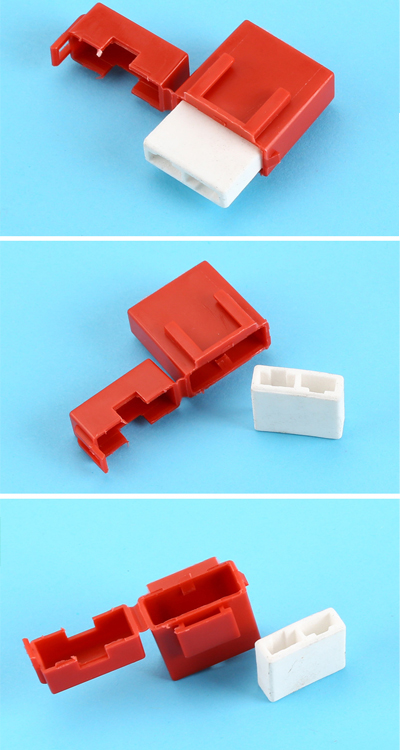

Details of BX2017 Inline Red Fuse Holder Ceramic Body for blade fuse
Features of BX2017 Inline Red Fuse Holder Ceramic Body for blade
fuse
1. Brand new and high quality
2. Automotive fuse box, suitable for medium-size blade fuses
3. Sturdy and robust construction
4. It can be secured via 2 pre-molded holes
5. With cover for dust and moisture protection
6. You can combine the holders to install together at any number
you need
7. Waterproof ceramic connector makes it more safe
8.12~18 AWG fuse holder, add protection to the circuit. When the
circuity is overload, the fuse will burning out and protect your
safety.
Wide range and customized services
| Fuses Amperes | 1A 2A 3A 4A 5A 7.5A 10A 15A 20A 25A 30A |
| Wire Gauge | 18AWG 16AWG 14AWG (UL1015 PVC) |
| Cable end | stripped and uncut ends are optional |
What you need to know before ordering:
| Size | This is for standard blade fuses (1A,2A,3A,5A,7.5A,10A,15A,20A,30A) |
| Wire | which gauge? how long? looped (uncut) or cut wire? |
| Fuse | need fuses preinstalled? |
Applications
Car, Boat, Truck, SUV, Motorcycle, etc.
Shipping Term:
EXW, DDU, DDP, C&F, FOB
Shipping Methods:
International Express, By Air, By Sea
Selection of the Fuse and Holder Solution
The first step is to answer the following questions:
- Will the fuse need to accessible for replacement?
- How often will the fuse need to be replaced?
- Should the end customer of the appliance have access to change the
fuse?
- Should the fuse only be accessible from outside the appliance?
- How much is available to spend on safety and reliability?
Notice
1. Replace the fuse according to the rated current value indicated
in the fuse box, and do not use a fuse with a higher rated current.
2. If the new fuse is blown immediately, this indicates that the
circuit system may be faulty and should be repaired as soon as
possible.
Q: Are you trading company or manufacturer ?
A: We are a fuse product factory.
Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock, 5-10 days if
the goods not in stock, according to the quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay
the cost of freight.
Q: What is your term of payment ?
A: 100% in advance, T/T.
Ask me for more about Red Body Ceramic Fuse Holder for blade fuses
